The heating film is a flexible and ultra-thin infrared electric heater. It is available in various heating capacities and widths. The heat and infrared generation system is based on a special graphite paste mixture, with the heating output depending on the density and composition ratio of the graphite layer.
The main applications of heating film include:
Infrared heating films operate based on the electrical resistance of carbon. The heating film is made using high-quality carbon and aluminum paste, which are applied to PET film using advanced printing technology. This innovative material offers excellent insulation and fire-resistant properties.
The PET layer is protected by a special LAMINEX film for added durability. A copper electrode ensures efficient power transmission, while a silver conductor prevents sparks and enhances overall safety.
0,338 mm
ALLE 25 cm
AC 230V, DC 12V
25 cm, 50 cm, 100 cm
VON 80 W/m² BIS 400 W/m²
WI-FI, App-Steuerung

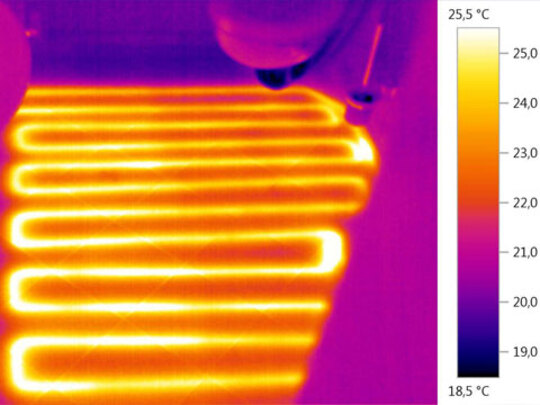

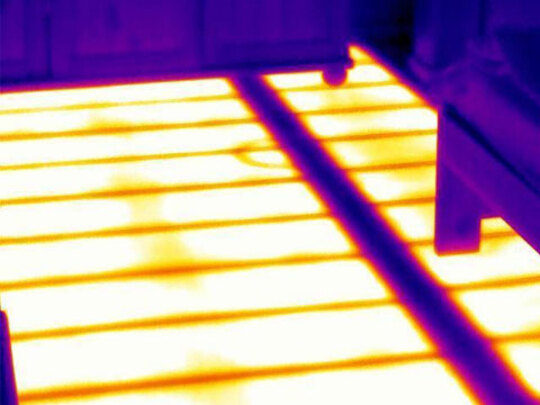

The heating film, unlike traditional heating cables, provides uniform warmth across the entire surface rather than heating specific points along a line. This flexibility allows it to be installed under almost any type of surface.
In general heating film is used with floating floors. In contrast, heating mats are typically installed under screed and tiles.
The heating film uses 50% less electricity compared to conventional heating mats, making it a highly energy-efficient solution.
Use a film heating system as the primary heating solution for homes, apartments, or as an alternative to existing heating systems. Additionally, the film can be used as a heating and anti-fog system for mirrors.
Individual room heating in hotels ensures the lowest heating costs. It prevents unnecessary heating of low-occupancy rooms, and dynamic heating rapidly provides warmth exactly when needed.
The ability to freely design your interior without the need for radiators, combined with underfloor heating controlled by a thermostat, ensures full control over the temperature in each zone while reducing operating costs.
Our heating system provides warmth exactly when and where it’s needed. Unheated spaces generate no costs, ensuring maximum energy efficiency and cost savings.
Our heating system provides warmth exactly when and where it’s needed. Unheated spaces generate no costs, ensuring maximum energy efficiency and cost savings.
Heating films provide a warm floor. Unlike other heating methods, they create the perfect environment for children to learn and play.
• Heating power is the most important value.
• House with energy rating A B C D can choose lower heating film power 80W/m 140W/m
• House with energy rating D E F G choose Higher heating film power 180W/m 220W/m
• Additional heating choose lower heating film power 80W/m 140W/m
• As a main heating source choose Higher heating film power 180W/m 220W/m
Ein qualifizierter Elektriker muss den Strom vom Hauptsicherungskasten zu einem Sicherheitsschalter (max. 16 Ampere) anschließen. Vom Sicherheitsschalter wird die Stromversorgung zum Thermostat weitergeleitet, und die Heizfolie wird direkt an den Thermostat angeschlossen. Die Verbindung erfolgt auf die gleiche Weise wie bei der Verwendung traditioneller Heizmatten. Bitte kontaktieren Sie uns für eine Installationsanleitung, falls eine Verbindung mit einem Nest-Thermostat erforderlich ist.
Die Heizfolie verteilt die Wärme gleichmäßiger, wird nach neuester Technologie gefertigt und nutzt elektrischen Widerstand, um langwellige Infrarotstrahlen (8 bis 15 Mikrometer) zu erzeugen. Unter optimalen Bedingungen können dadurch die Heizkosten um bis zu 50 % reduziert werden.
Es ist nicht erforderlich, 100 % der Raumfläche abzudecken. Dieses Produkt ist äußerst effizient und bietet einen hohen thermischen Komfort, selbst wenn nur 75 % der Bodenfläche bedeckt sind. Zuerst sollten Bereiche abgedeckt werden, die am häufigsten genutzt werden, wie Laufwege und der Mittelpunkt des Raumes. Vermeiden Sie die Installation unter Möbeln mit flachem Boden. Die Installation unter Möbeln auf Beinen ist erlaubt. Halten Sie einen Mindestabstand von 100 mm / 4 Zoll zur Wand ein.
Alle Artikel werden in einem Lager in Großbritannien aufbewahrt. Bestellungen, die vor 11:00 Uhr eingehen und bezahlt werden, werden noch am selben Tag mit einem 24-Stunden-versicherten Versandservice verschickt. Wir arbeiten mit UPS und FedEx zusammen.
Thermostate haben eine Belastungsgrenze von 16 Ampere. Für einen störungsfreien Betrieb sollte nur 80 % der zulässigen Last genutzt werden.
Ein Thermostat wird mit einem Abschnitt verbunden, alle Abschnitte/Bereiche werden separat gesteuert.
Die Temperatur kann in jedem Raum individuell eingestellt werden.
Unsere Thermostate sind für maximale Energieeinsparungen kalibriert.
All our heating systems, whether it is cable or carbon film, come with a full set of installation instructions, providing a simple step by step instructions. Most systems can be installed on a DIY basis. But the final electrical connection should be made by a qualified electrician.
The temperature of each room is individually controlled by a programmable thermostat
No heat losses, heat is generated in the place of usage.
Precise temperature control from your smartphone, only turns on heating when needed.
This technology uses Far infrared radiation, heats up objects, not the air, this means air temperature can be reduced on average 2°C
In high energy rating houses, low Voltage heating film can be used 60W/m, 80W/m, 140W/m.
The heating film can be connected to the photovoltaic panels or any renewable energy source to reduce the heating cost to 0 GBP.
To optimise efficiency we strongly recommend use floor insulation.
A 5m2 floor fitted with heating film and 5mm foam insulation would cost approximately 0.15p per day to run, this is based on the heating system being on twice a day for two hours each time, this assumes a 50% duty cycle once the floor has reached temperature and assumes a cost of 0.13p per kWh.
Heating film power has no impact on energy usage, the only difference will be floor heating up time.
For most domestic size rooms the system can usually be connected to an existing household ring main circuit, wiring via a fused switch spur. For larger areas, a single dedicated circuit from the main unit may be needed. The thermostat will accept 16 Amps. All electrical work must be carried out by a qualified electrician. Care must be taken to ensure that the combined load does not exceed the switching capacity of the thermostat.
| Heating film power | Max heating film area for 16A thermostat (square meters) |
| 80 W/m² | 42m² |
| 140 W/m² | 23m² |
| 180 W/ m² | 18m² |
| 220 W/m² | 14m² |
| 400 W/m² | 8m² |
This will vary depending on the subfloor and the insulation material. Better the insulation the quicker it will heat up. Heating up time depend on heating film power. 220W/m heat up 12mm engineering wood in 5 minutes, concreted floors heat up around 15 minutes but also retain heat for a longer time.
The thermostats come supplied with a floor probe that will continuously monitor your floor temperature. We always recommend installing a floor probe in your floor especially if you use 200W or 180W heating film power this is a key to control your floor temperature.
Higher house energy rating = lower heating film power required. For new build, passive houses use 80W/m or 60W/m this becoming a very popular solution in Germany, Poland, Norway, Netherlands.
Yes, Note you can’t place ceramic tiles directly on the heating film, the concrete screed is necessary, minimum 30mm. If you can’t build up floor this high use heating wire this is a simple solution and allow you to lay down ceramic tiles directly on the subfloor, wire diameter is only 3.6mm

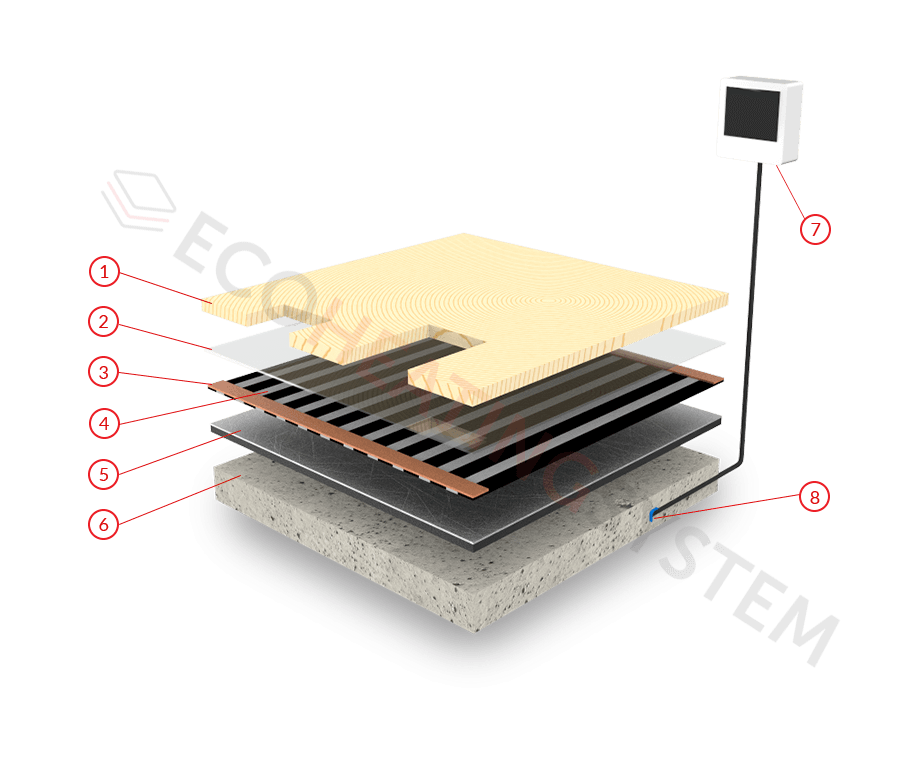

When using heating foil under laminate, engineered wood or ceramic tiles our foam thermal insulation should always be used. It not only provides thermal insulation, reducing running costs but acts as a method of sound deadening and forms a suitable non-abrasive surface on which heating film can sit.
This is also perfect underlay no other underlay or insulation is required.
Do not use any insulation material with electric cable mats.
Yes if you have 5 thermostats in your house you can control all from one smartphone or I pad from any place in the world with access to the Ethernet. All rooms/thermostats are controlled separately.
Connection must be made via a 30mA RCD. We highly recommend the final connection to be fitted by a fully qualified electrician in accordance with the current wiring regulations.
The heating film is cover with 6 years warranty. We can offer a lifetime warranty if the system is installed by an authorised installer with an issued certificate.
Electric underfloor heating systems are ideal for conservatories. When using electric underfloor heating in this sort of area we would strongly recommend the use of the 220W/m² system or the 180W/m² for wooden or laminate floors. We would also highly recommend using suitable insulation.
Electric underfloor heating cables must never be cut, mats consist of a cable fixed to a nylon web. Whilst the cable must not be cut you can cut the web at any point to allow the mat to be laid out to suit the shape of the room. See our installation videos.
Carbon heating film can be cut every 250mm is available in three widths 1 meter/50cm/250mm.
Yes you can. As long as you return the product in the same condition and in no way damaged you can return items to us for a refund within 14 days of purchase please see our terms & conditions.
If you realise that you have purchased the wrong size system before unpacking, you can simply return the item to us within 14 days of purchase and we will find a suitable heating option to fit your requirements. If an insufficient amount of foil was ordered please contact us we can send missing element next day delivery.
To install a heating mat no additional tools are required.
A crimping tool is required when installing a carbon heating film.
Yes. For any underfloor heating use, flexible tile adhesive and grout will be required. The special polymers added to flexible adhesives will make allowances for any tile floor movements through heat expansion and contraction.
